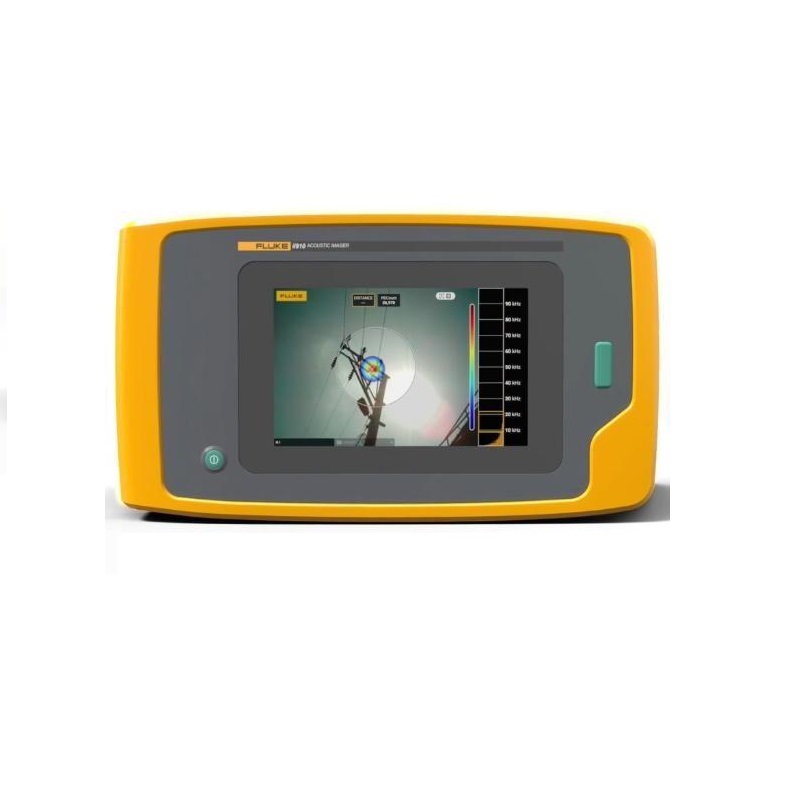

Fluke ii910 Precision Acoustic Imager – Partial Discharge & Leak Detector

The Fluke ii910 Precision Acoustic Imager is a professional acoustic imaging camera designed for fast and accurate detection of partial discharge, compressed air leaks, gas and vacuum leaks, and mechanical issues. Using Fluke SoundSight™ technology, the ii910 converts acoustic signals into a visual SoundMap™, allowing maintenance teams to quickly locate potential problems from a safe distance.

Key Features:

• Partial Discharge (PD) detection and classification
• Detects Corona Discharge
• Compressed air, gas, and vacuum leak detection
• Mechanical issue detection
• Fluke SoundSight™ acoustic imaging technology
• SoundMap™ visual acoustic display
• PDQ Mode™ for partial discharge detection and classification
• LeakQ™ for leak rate and cost estimation
• MecQ™ for mechanical inspection
• Detection Distance: 0.5 m to over 120 m
• Frequency Range: 2 kHz to 100 kHz
• Built-in 5 MP digital camera
• 3× Digital Zoom
• 7-inch LCD touchscreen
• Display Resolution: 1280 × 800 pixels
• Field of View: 63° ±5°
• Frame Rate: 25 FPS
• Photo and video recording with SoundMap™ overlay
• Video Recording: up to 5 minutes
• USB-C data transfer
• Rechargeable Li-ion battery
• Battery Runtime: up to 6 hours per battery
• Protection Rating: IP40
• Weight: 2.15 kg
• Safety Standard: IEC 61010-1

Applications:

• Electrical Partial Discharge Detection
• High-Voltage Equipment Inspection
• Compressed Air Leak Detection
• Gas and Vacuum Leak Detection
• Preventive and Predictive Maintenance
• Mechanical Equipment Inspection
• Industrial Maintenance and Troubleshooting

What’s Included:

• Fluke ii910 Precision Acoustic Imager
• AC Power Supply / Battery Charger
• 2 × Rechargeable Li-ion Smart Batteries
• USB Cable
• Rugged Carrying Case
• Adjustable Hand Strap
• Adjustable Neck Strap
