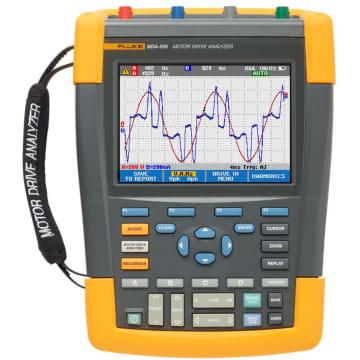

Fluke MDA-510 Motor Drive Analyzer – 4 Channel, 500 MHz

Description

The Fluke MDA-510 Motor Drive Analyzer is a professional portable test tool designed for troubleshooting and analyzing variable frequency motor drives and motor-drive systems.

Key Features:

– 4-channel Motor Drive Analyzer
– Oscilloscope Bandwidth: up to 500 MHz
– Guided motor-drive measurements
– Graphical step-by-step connection diagrams
– Preset measurement profiles
– AC and DC voltage measurements
– True-RMS AC+DC measurements
– PWM voltage measurements
– Peak voltage measurements
– Maximum Voltage: up to 1000 V with appropriate probe
– Current measurement using compatible current probes
– Frequency measurements
– Voltage-to-Frequency (V/Hz) measurement
– Voltage and current unbalance measurements
– DC Bus voltage and ripple analysis
– Drive input measurements
– Drive output measurements
– Motor input measurements
– Rise and fall time measurements
– Waveform recording and analysis
– Save measurement screens and data
– Built-in report generation
– USB connectivity
– Compatible with FlukeView™ 2 software
– Portable and rugged design for industrial field use

Applications:

– Variable Frequency Drive (VFD) Troubleshooting
– Motor Drive Analysis
– Drive Input Testing
– DC Bus Testing
– Drive Output Testing
– Motor Input Analysis
– PWM Signal Analysis
– Voltage and Current Unbalance Testing
– Industrial Electrical Troubleshooting
– Preventive and Predictive Maintenance
