Hall Effect Two Channel Magnetic Rotary AB Encoder for DC motors

Description

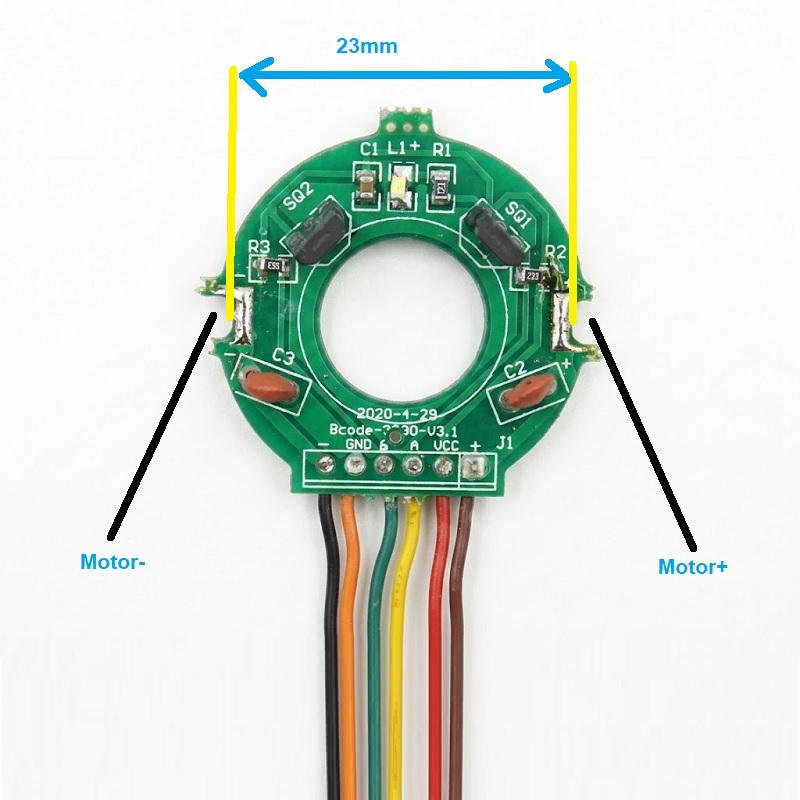

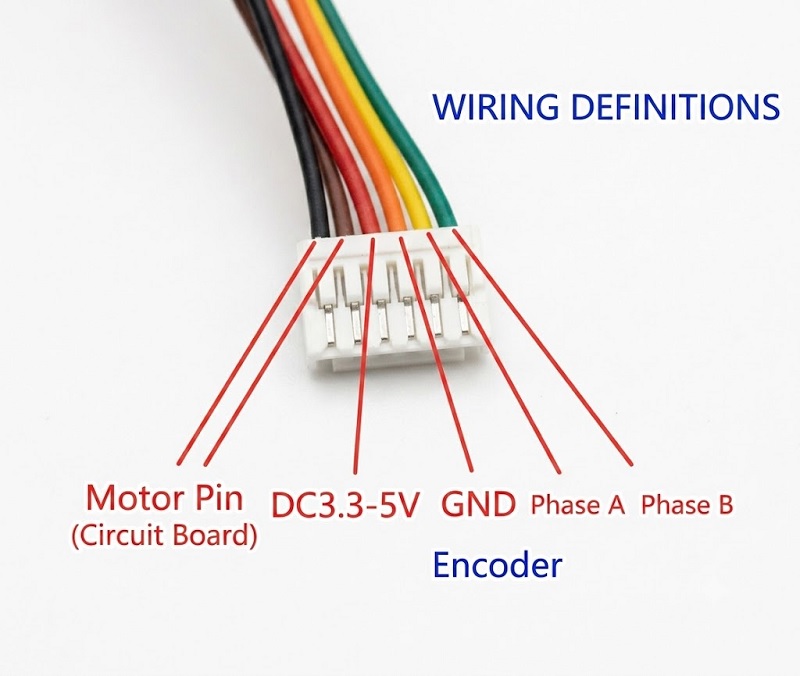

Features: A two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 7 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48. The encoder has six pins output as shown.

this Hall Effect Two Channel Magnetic Encoder’s Hall sensor requires an input voltage, Vcc, between 3.3 and 5 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.

By counting both the rising and falling edges of both the A and B outputs, it is possible to get 7 counts per revolution
of the motor shaft by both Channels.

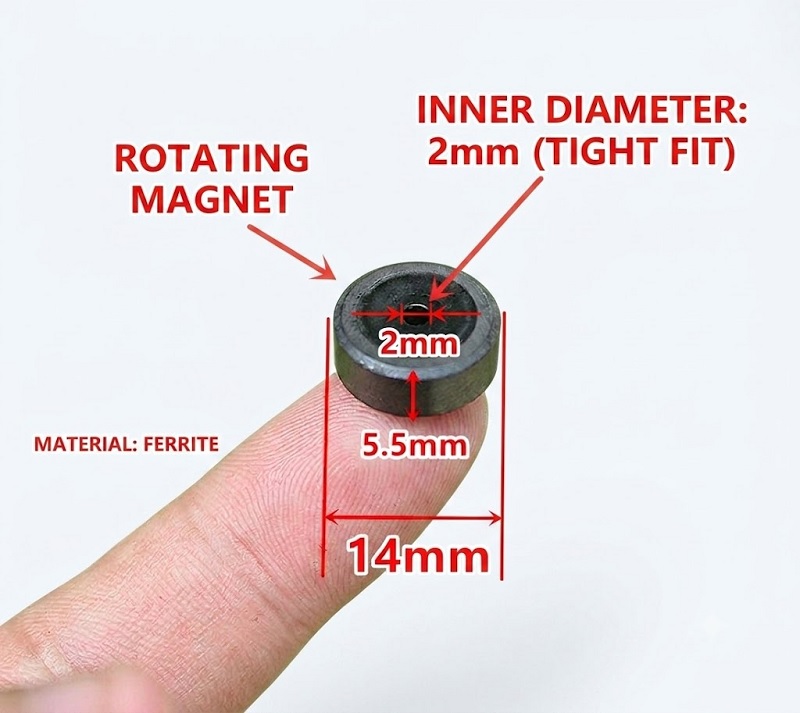

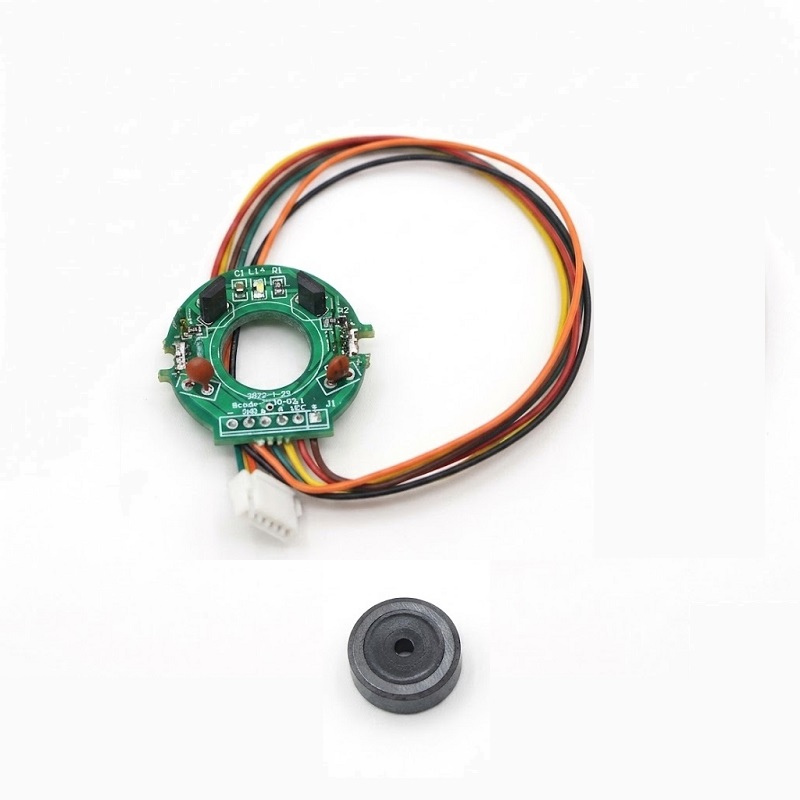

Encoder comes complete accessories required to mount the encoder on motor i.e. magnet, connecting cable
