HIOKI PW3360-21 Clamp On Power Logger, 3-Phase, 600V AC, Harmonic Measurement

Description

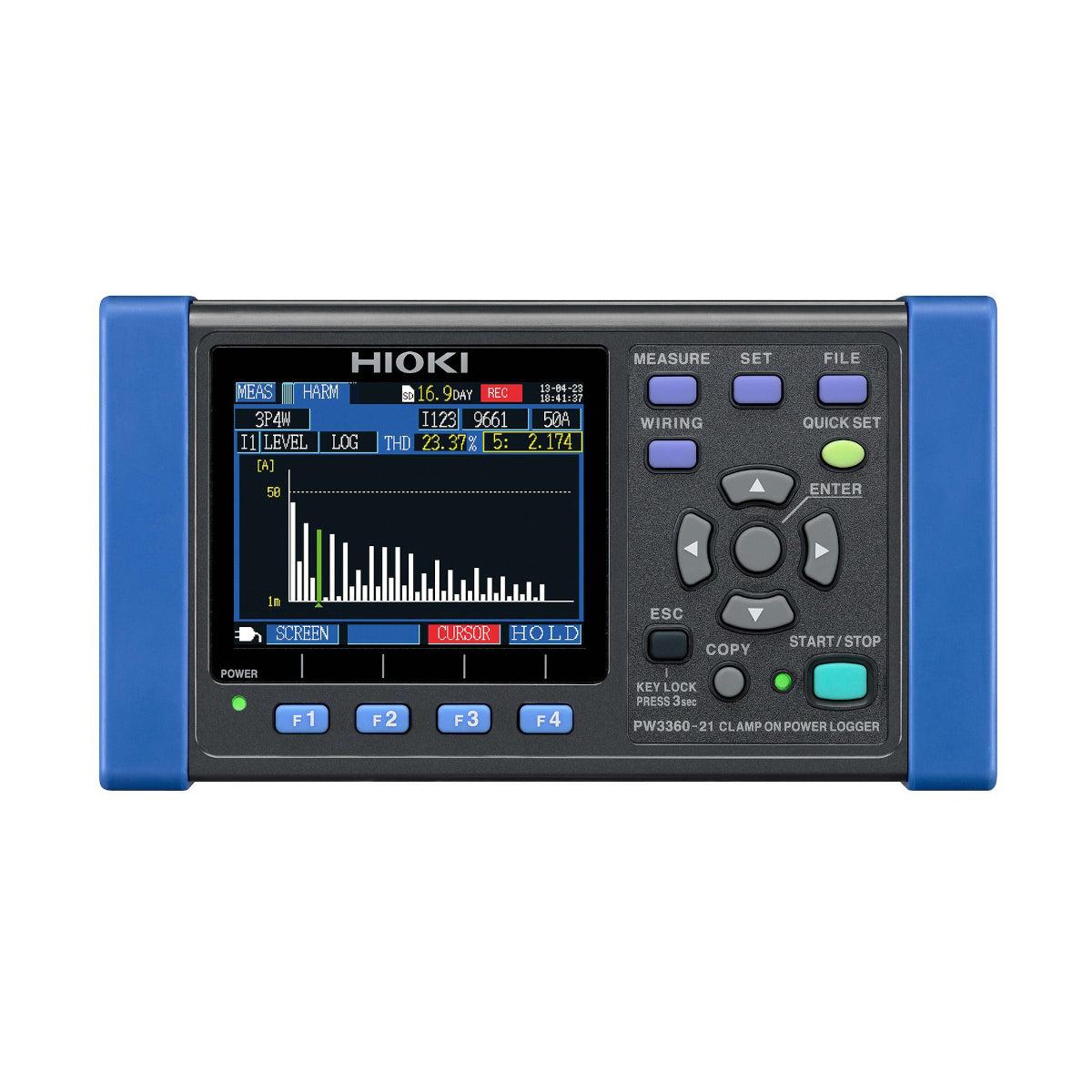

The HIOKI PW3360-21 Clamp On Power Logger is a compact and advanced power measurement and logging instrument designed for energy management, power monitoring, demand analysis, and harmonic measurement in single-phase and three-phase electrical systems.

The PW3360-21 supports single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems. It features three voltage input channels and three current input channels and supports a wide range of HIOKI clamp-on current sensors.

The instrument measures voltage, current, active power, reactive power, apparent power, power factor, energy, demand, frequency, and other electrical parameters. The PW3360-21 also provides harmonic analysis of voltage, current, and power up to the 40th harmonic order, including harmonic content, phase angle, and total harmonic distortion (THD).

Key Specifications:

• Model: PW3360-21
• Brand: HIOKI
• Product Type: Clamp On Power Logger
• Measurement Systems: Single-Phase 2-Wire, Single-Phase 3-Wire, Three-Phase 3-Wire, Three-Phase 4-Wire
• Frequency: 50 / 60 Hz
• Voltage Inputs: 3 Channels
• Current Inputs: 3 Channels
• Voltage Range: 600V AC
• Effective Voltage Measurement Range: 90V to 780V AC
• Voltage Display Range: 5V to 1000V
• Maximum Voltage Peak: ±1400V
• Power Measurement Range: 300W to 9MW
• Voltage Accuracy: ±0.3% rdg. ±0.1% f.s.
• Current Accuracy: ±0.3% rdg. ±0.1% f.s. + Clamp Sensor Accuracy
• Active Power Accuracy: ±0.3% rdg. ±0.1% f.s. + Clamp Sensor Accuracy
• Harmonic Analysis: Up to 40th Order
• Harmonic Parameters: Voltage, Current, Power, Content, Phase Angle and THD
• Harmonic Standard: IEC 61000-4-7:2002 Compliant (without interharmonics)
• Display: 3.5-inch TFT Color LCD, 320 × 240 Pixels
• Data Storage: SD Card and Internal Memory
• Recording Interval: 1 Second to 60 Minutes
• Communication Interfaces: LAN 100BASE-TX and USB 2.0
• Pulse Input / Output: Supported
• Operating Temperature: -10°C to +50°C
• Battery Operation: Approx. 8 Hours with Optional Battery Pack
• Dimensions: Approx. 180 × 100 × 48 mm
• Weight: Approx. 550g Without Battery Set
• Safety Rating: CAT III 600V / CAT IV 300V

Main Features:

• QUICK SET function helps ensure correct wiring and clamp orientation
• Supports single-phase and three-phase power systems
• Measures voltage, current, active power, reactive power, apparent power, power factor, energy and frequency
• Harmonic analysis up to the 40th order
• Demand and trend graph display
• Long-term data recording to SD card
• Supports optional leakage-current clamp sensors
• LAN remote monitoring and automatic file transfer
• USB connectivity for convenient data transfer
• Compact design with 3.5-inch color LCD
• Compatible with multiple HIOKI clamp-on current sensors
• Supports PC-based data analysis with compatible HIOKI software

Standard Accessories:

• L9438-53 Voltage Cord – 1 Set
• Z1006 AC Adapter – 1
• USB Cable – 1
• Instruction Manual – 1
• Measurement Guide – 1
• Color Clips – 1 Set
• Spiral Tubes for Grouping Clamp Sensor Cords – 5
