PCB for ESP32 16 Channels Relay Module IOT Development Board

SKU: A1-14-6
In Stock
EGP 350.000 exc. vat
In Stock

Other people want this. 2 people have this in their carts right now.

16 Channels Relay Module for ESP32 IOT Development Board 5V

SPECIFICATION:

  • Product Name: 16-Channel Relay Module board
  • Number of Channels: 16
  • Control Signal voltage: 5V
  • Load Voltage: AC 250V/10A, AC 125V/15A DC 30V 10A
  • Input power: 5V , 16 channels optically isolated.
  • Standard interface that can be controlled directly by ESP32 with Indication LED’s for each Relay output status. Independent common end COM makes the relay convenient for users to access different signals. Use optocoupler protection with high safety performance Widely used for all MCU control, industrial sector, PLC control, smart home control.
  • Dimensions : 166mm X 134mm

Description

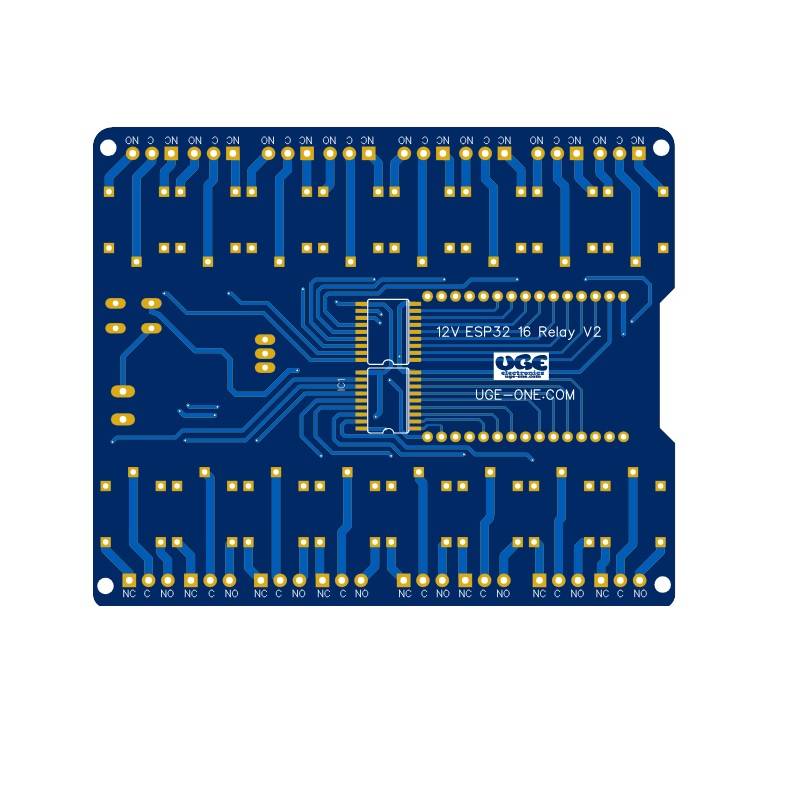

PCB for ESP32 16 Channels Relay Module IOT Development Board

This PCB for DIY 16 Channels Relay Module Suitable ESP32 IOT Development Board 12V input power

INTRODUCTION:

Our 16 Channels Relay PCB Empty Module for ESP32 IOT Development Board 12V is made for embedded developers In order to meet the customer’s demand for the control of the switching device, we releases a ESP32  Compatible 16-channel relay module which allows a small level signal to control any normal outlet or high voltage This is a 12V 16-Channel Relay interface board, be able to control any electric appliances rated at under 2000 Watts. It supports ESP32 Module control, for smart home control. The common end COM of each relay is independent, which makes it convenient for users to access different signals. Each relay is equipped with indicator light, which is on and off. The working status indicator light is good for safe use.
For Mre Products Like that Click Here

SPECIFICATION:

  • Product Name: PCB 16-Channel Relay Module board
  • Number of Channels: 16
  • Control Signal voltage: 5V
  • Load Voltage: AC 250V/10A, AC 125V/15A DC 30V 10A
  • Input power: 12V
  • Standard interface that can be controlled directly by ESP32 with Indication LED’s for each Relay output status. Independent common end COM makes the relay convenient for users to access different signals. Widely used for all MCU control, industrial sector, PLC control, smart home control.
  • Dimensions : 144mm X 85mm

use this link as soldering guide and bill of materials also included

Additional information

Weight 265 kg
Dimensions 166 × 134 × 25 cm
