Name: PJ-313 3.5mm Stereo headphone Female jack straight pin
SKU: D21-10-PJ-313
Price: 4.000 EGP
Availability: InStock

PJ-313 3.5mm Stereo headphone Female jack straight pin

Model: PJ-313

SKU: D21-10-PJ-313

In Stock

EGP 4.000

In Stock

PJ-313 3.5mm Stereo headphone Female jack straight pin

Description

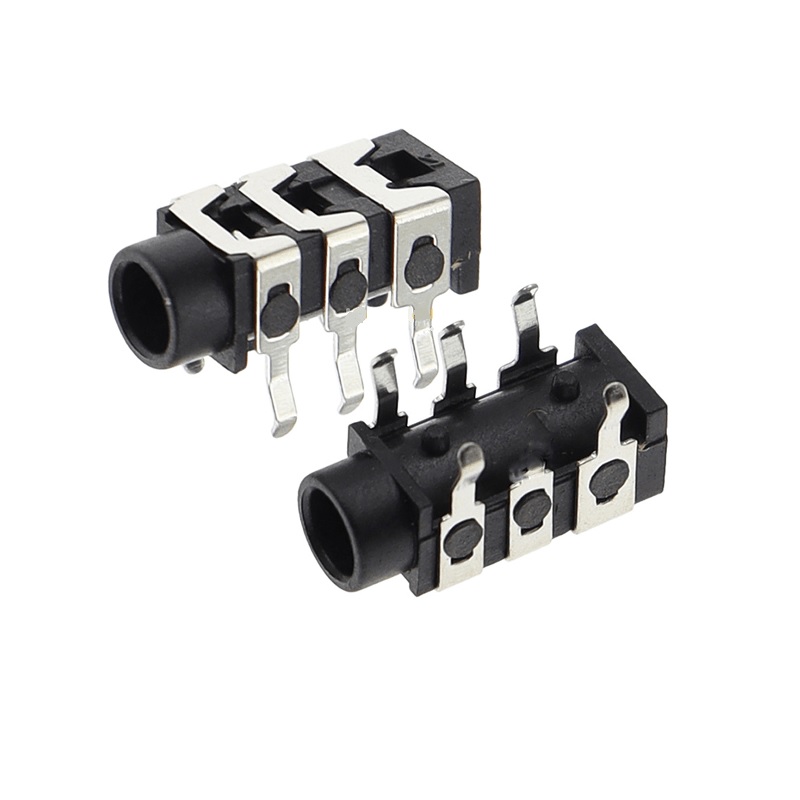

The PJ-313 is a standard 3.5mm stereo headphone jack with straight pins for through-hole PCB mounting. Specifications vary slightly by manufacturer, so here is a consolidated overview:

Key Specifications

Parameter	Typical Value	Notes
Connector Type	3.5mm Stereo Headphone Jack	Female socket
Mounting	Through Hole (Plugin)	Straight pins
Rated Voltage	24V – 30V	Varies by manufacturer
Rated Current	25mA – 500mA	Depends on specific model
Contact Resistance	≤30mΩ
Insulation Resistance	≥100MΩ
Withstand Voltage	500V AC/minute
Operating Temperature	-25°C to +70°C / -30°C to +70°C
Contact Material	Phosphor Bronze
Contact Plating	Silver or Tin	Varies by supplier
Insertion/Extraction Force	3N – 30N
Life Cycle	5000 Cycles

Design & Usage Notes

Polarity: As a stereo jack, it typically has three contacts: Tip (Left), Ring (Right), and Sleeve (Ground). Some variants may include additional switch contacts for detection purposes.
PCB Footprint: Since it uses straight through-hole pins, ensure your PCB footprint matches the pin spacing and hole sizes for the specific manufacturer’s part. EasyEDA footprints are available for several PJ-313 variants
