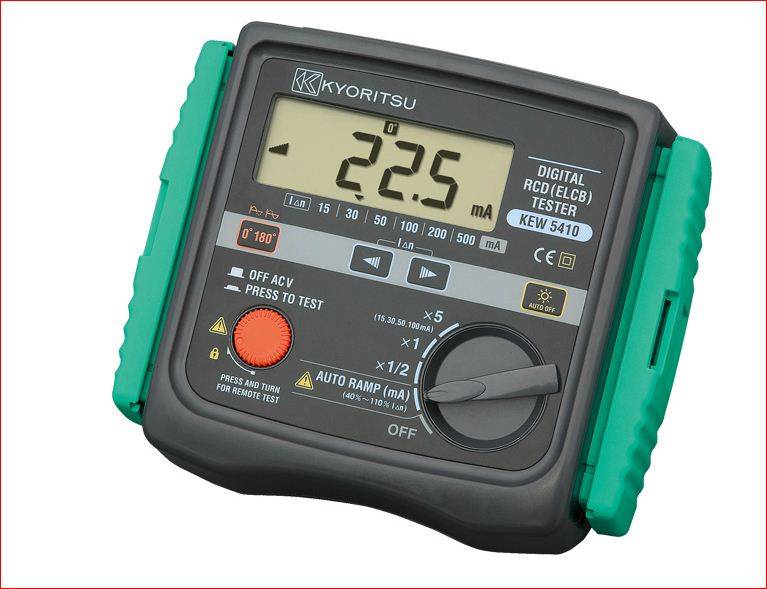

Description
RCD trip time test:
× 1/2 scale test does not work rated current.
× 1 / × 5 scale test RCD trip time.
Residual current test: automatically use different current testing residual current value.
Remote Testing:
Testing key lock can be operated with both hands after the test line.
Automatic test after detecting the primary voltage.
Voltage test: each range standby mode test rated voltage.
Automatically detect contact voltage:
When RCD testing, detection or protection grounding conductor to ground voltage.
Used in the test ground to avoid an electric shock (after applying a test current).
AC50V over when to stop testing.
Backlight function: suitable for a dark place operations.
Waterproof and dustproof: Designed to meet international safety standard IEC60529 (IP54).
|
R
C
D
jump
off
time
between
left
I
power
flow
measurement
test
|
Range
|
× 5
|
× 1
|
× 1/2
|
Residual current (mA)
|
|
Rated voltage
|
100A ± 10% 200V ± 32% / – 10% 400V ± 10% (50 / 60Hz)
|
|
Test Current
|
15/30/50 / 100mA
|
15/30/50/100/200 / 500mA
|
15/30/50/100/200 / 500mA
|
|
Test range
|
Test time
200ms
|
Test time
2000ms
|
Test time
2000ms
|
40% ~ 110% lΔn of
(5% rise)
test time 300ms × 15 times
|
|
Accuracy
|
Trip time
|
± 1% rdg ± 3dgt
|
± 1% rdg ± 3dgt
|
± 1% rdg ± 3dgt
|
Each test current
~ + 4% -4%
|
|
Test Current
|
+ 2% rdg ~ ± 8% dgt
|
+ 2% rdg ~ ± 8% dgt
|
-8% Rdg ~ -2% dgt
|
|
Voltage Test
|
Test range
|
80V ~ 450V (50 / 60Hz)
|
|
Accuracy
|
± 2% rdg ± 4dgt
|
|
Safety Specifications
|
IEC61010-1 CAT.III 300V / CAT.II 400V Pollution degree 2
IEC61010-031, IEC61557-1,6, IEC60529 (IP54)
|
|
Show
|
1999 counts (3.5 digital display), LCD big screen
|
|
Use of temperature and humidity range
|
0 ℃ ~ 40 ℃ relative humidity below 85%, non-condensing
|
|
Save temperature and humidity range
|
-20 ℃ ~ 60 ℃ relative humidity below 85%, non-condensing
|
|
Withstanding Voltage
|
AC3700V / min (electrical circuit between the outer box)
|
|
Insulation Resistance
|
≥50MΩ / 1000V (between electrical circuit and outer carton)
|
|
Automatic shutdown
|
After about 3 minutes automatic shutdown operations, (current consumption of about 75μA), this feature is not available for voltage testing. To exit this mode, the function switch is set to become OFF, select the required test range again. After one minute the backlight lights on, off automatically.
|
|
Power supply
|
DC12V / AA batteries R6P (SUM-3) × 8
|
|
Dimensions
|
186 (L) × 167 (W) × 89 (D) mm
|
|
Testing times
|
More than 1200 times (time × 1/2 range, every 30 seconds test, lΔn = 100mA)
|
|
Accessories
|
7128A (test line), 7129A (alligator clip test line), 8017 (long probe) × 2
9147 cable boxes, 9121 strap, manual, battery R6P (SUM-3) × 8
|
Brand
KYORITSU
Kyoritsu Electrical Instrument
KYORITSU brand
