RF Power Meter logarithmic detector power detection (1-8GHz) Module

Description

1-8000MHz logarithmic power detector

Product Usage:

       The RF detector operating frequency range 1-8000MHz (not wrong ) , can detect the RF signal -65–5dBm, and in the form of a DC voltage output is the detected signal strength (in dBm, logarithmic detection) , the such a radio frequency signal is converted into a DC voltage output. RF signal corresponding to the amplitude or power of the output voltage. You can do signal strength indicator RSSI, spectrum analyzer, gain control.

Technical Specifications

1, the operating frequency: 1-8000MHz

2 , Dynamic Range: -65dBm to + 5dBm

3, the slope detection:  – 25 mV / dB ( typ)

4 , the detection output voltage range: 0.5–2.1V

5, power supply voltage: 7–15 V the DC (customizable)

6 , the input impedance: 50 Euro

7, the radio interface: standard SMA female

Detection curve

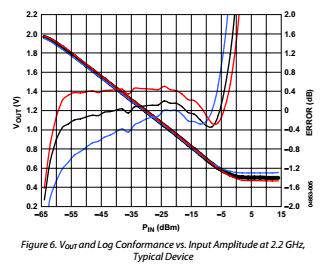

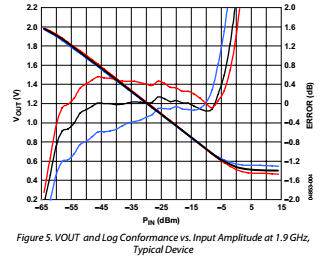

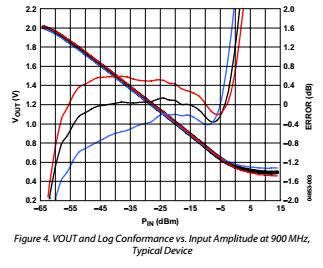

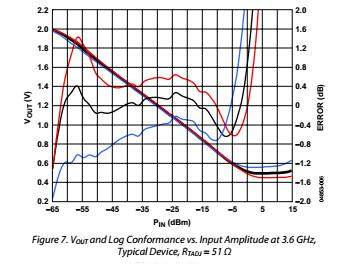

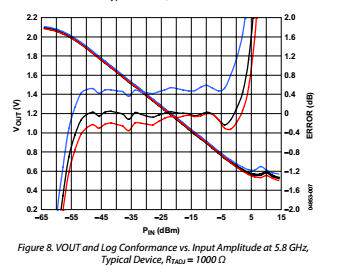

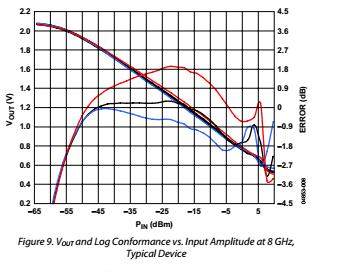

         Red: + 85 ° C                                 black line: + 25 ° C                                  Blue Line: -40 ° C

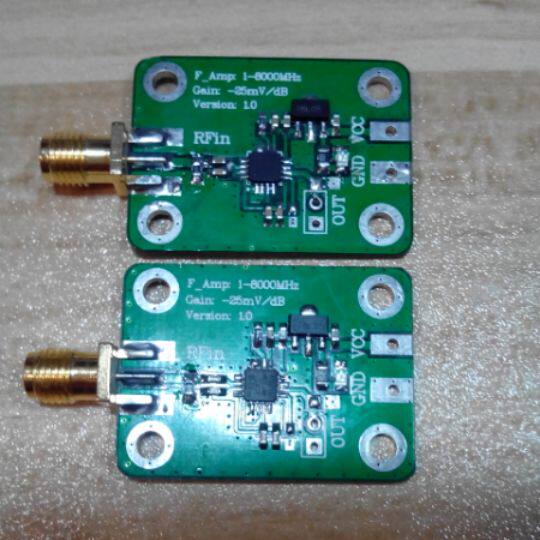

Product Image:
