Name: SALICRU SLC-10000-TWIN PRO3
SKU: AT-SLC-10000-TWIN-PRO3
Price: 120000.000 EGP
Availability: InStock

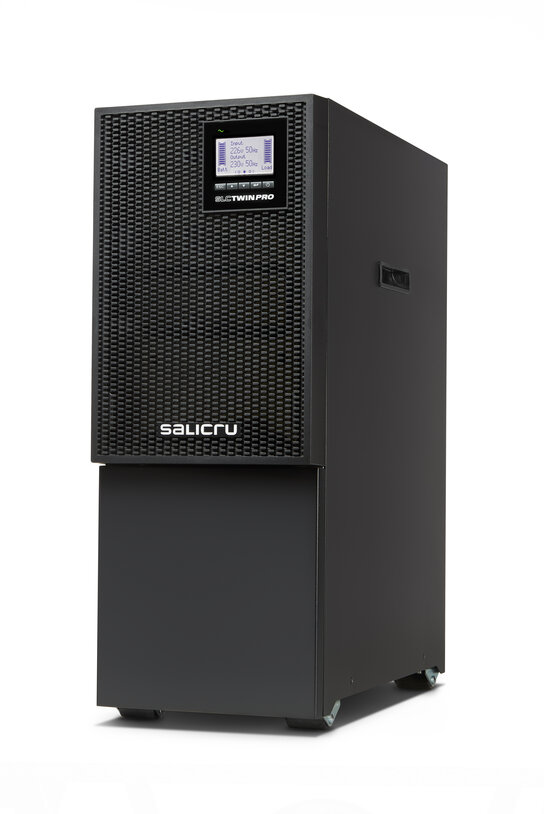

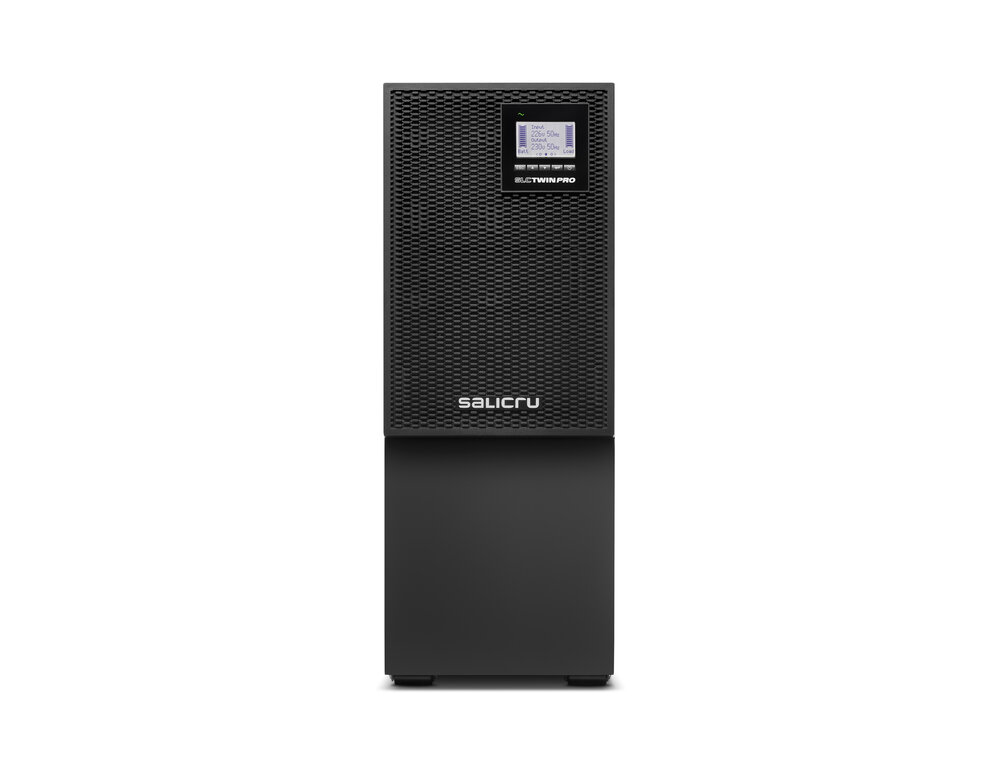

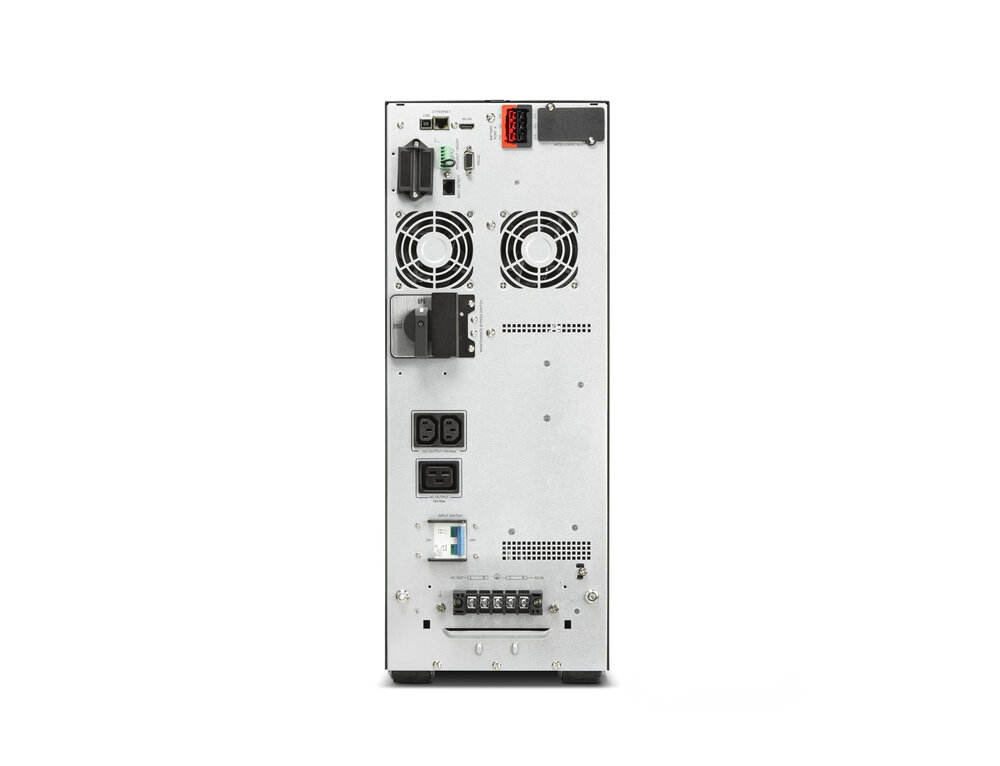

SALICRU SLC-10000-TWIN PRO3

Model: SLC-10000-TWIN PRO3

SKU: AT-SLC-10000-TWIN-PRO3

In Stock

EGP 120,000.000

In Stock

Weight

Weight Based Class

Power (VA): 10000

Type: UPS Standard

Code: 6B5AB000005

EAN: 8436584873259

Description

THIS IS A 10000 VA Uninterruptible Power Systems (UPS) IoT On-line double conversion and DSP control with FP=1

Robustness, energy efficiency and extended connectivity: the best combination to protect your productive environment.

Specifications :

Technical specifications :

TECHNOLOGY : On-line double-conversion

FORMAT : Tower

INPUT :

Rated voltage : 220/230/240 V

Voltage range : 110 ÷ 276 V(1)

Rated frequency : 50 / 60 Hz (auto-detection)

Frequency range : 50 ±5 Hz/60 ±6 Hz

Total harmonic distortion (THDi) : <3 % linear load / <5 % non-linear load

Power factor : ≥0,99

OUTPUT :

Power factor : 1

Rated voltage : 220/230/240 V

Voltage accuracy (battery mode) : ±1%

Total harmonic distortion (THDv) : < 1% linear load / < 5% non-linear load

Synchronised frequency : 50 ±5 Hz/60 ±6 Hz

On-line performance : 95%

Eco-mode performance : 98 %

Admissible overloads in battery mode : 105 ÷ 125 % for 1 min/125 ÷150 % for 30 s/>150 % for 500 ms

Admissible overloads in bypass mode : 105 ÷ 125 % for 30 s/>150 % for 5 min/>150 % for 500 ms

Admissible overloads in-line mode : 105 ÷ 125 % for 10 min/125 ÷150 % for 30 s/>150 % for 500 ms

Parallel : Yes, up to 3 units

BATTERY :

Protection : Against overvoltages, undervoltages and overheating

Battery type : Pb-Ca sealed, AGM, maintenance-free

Charge type : Smart charge with 3 modes

Recharge time : 3 hours to 90%

Maximum no. of EBMs : 6

CHARGER :

Temperature voltage compensation : Yes

Charging current : Adjustable 0 ÷ 4 A (0 ÷ 12 A for B1 devices)

COMMUNICATION :

Ports : USB-HID/RS-232/RJ-45/HDMI for dongle wifi

Intelligent slot : For SNMP/AS400/Modbus

Monitoring software : Software for Windows, Linux and Mac/app for iOS and Android/web portal

OTHER FUNCTIONS :

Cold start (start-up from batteries) : Yes

Emergency stop (EPO) : Yes

OPERATING MODES :

Eco-mode : Yes

Frequency converter (CVCF) : Yes(2), operates with or without batteries

GENERAL :

Operating temperature : 0º C ÷ +50º C(3)
Relative humidity : Up to 95%, non-condensing
Maxium operating altitude : 2,400 masl (power degradation up to 5,000 m)⁽⁴⁾

Acoustic noise at 1 metre : <55 dB ÷ <60 dB at full load/<50 dB ÷ <55 dB at 75% load

STANDARDS:

Safety : EN IEC 62040-1

Electromagnetic compatibility (EMC) : EN 62040-2 (C3)

Operation : VFI-SS-11 (EN 62040-3)

Corporate cerification : ISO 9001, ISO 14001, ISO 45001

DIMENSIONS:

Depth (mm) : 492

Width (mm) : 225

Height (mm) : 589

WEIGHT:

Weight (kg) : 60

Spain Brand … warranty : 2 Years

Additional information

Weight	60 kg
Dimensions	492 × 225 × 589 cm
