SGM3204YN6G Unregulated 200mA Charge Pump Voltage Inverter SOT23-6

Model: ICL7660
SKU: D22-26-1
In Stock
EGP 30.000 exc. vat
In Stock

Other people want this. 1 people have this in their carts right now.
Brand:Chinese

Description

SGM3204YN6G Unregulated 200mA Charge Pump Voltage Inverter SOT23-6

DESCRIPTION:

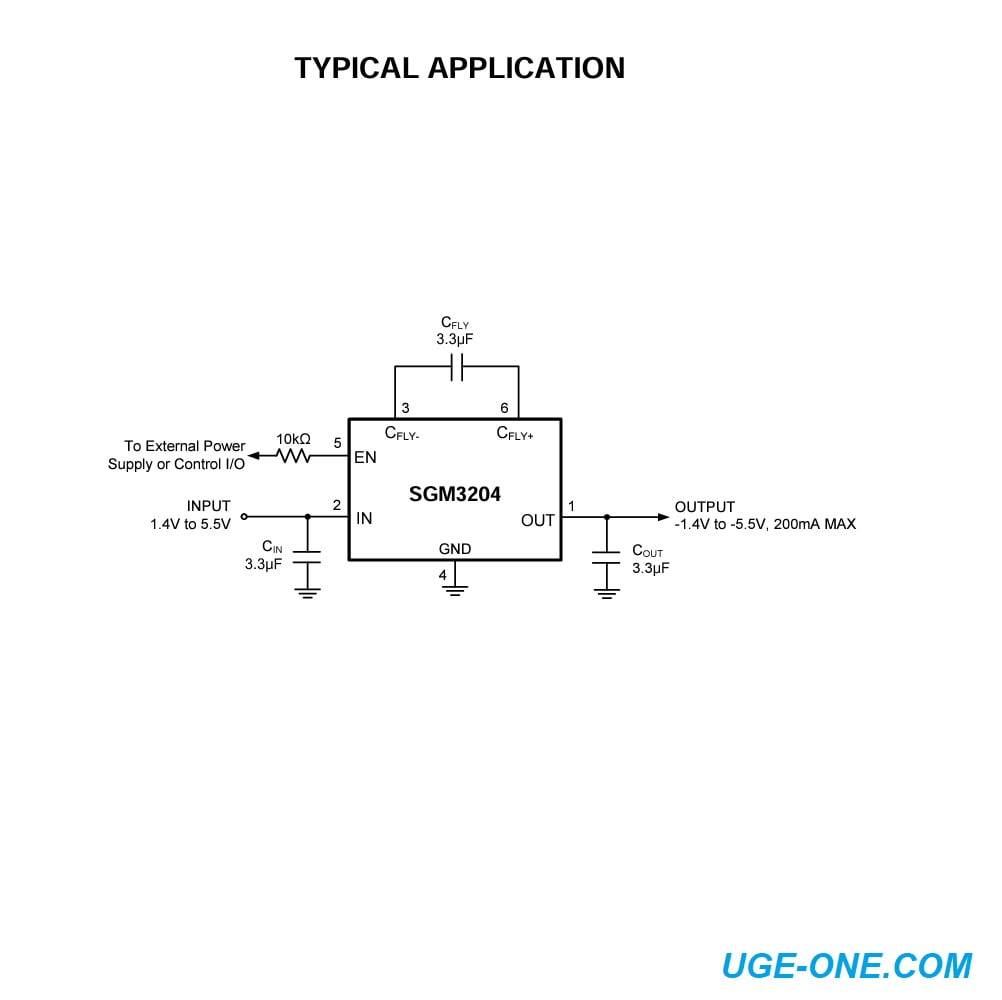

The SGM3204 generates an unregulated negative output voltage from an input voltage ranging from 1.4V to 5.5V. The device is typically supplied by a pre-regulated supply rail of 5V or 3.3V. Due to its wide input voltage range, two or three NiCd, NiMH, or alkaline battery cells, as well as one Li-ion cell can also power them. Only three external capacitors are required to build a complete DC/DC charge pump inverter. Assembled in a small package, the complete converter can be built on a 50mm2 board area. Additional board area and component count reduction is achieved by replacing the Schottky diode that is typically needed for start-up into load by integrated circuitry. The SGM3204 can deliver a maximum output current of 200mA with a typical conversion efficiency of greater than 80% over a wide output current range. The SGM3204 is available in SOT-23-6 package. It operates over an ambient temperature range of -40℃ to +85℃.

FEATURES:

 Inverts Input Supply Voltage

 Up to 200mA Output Current

 Input Voltage Range from 1.4V to 5.5V

 Quiescent Current: 1.5mA (TYP)

 950kHz Switching Frequency

 Integrated Active Schottky Diode for Start-Up into Load

 -40℃ to +85℃ Operating Temperature Range

 Available in Green SOT-23-6 Package

APPLICATIONS:

LCD Bias

GaAs Bias for RF Power Amps

Sensor Supply in Portable Instruments

Bipolar Amplifier Supply

Datasheet

Additional information

Weight 0.005 kg
