SYN115 ASK transmitter IC SOT23-6

Description

SYN115 ASK transmitter IC SOT23-6

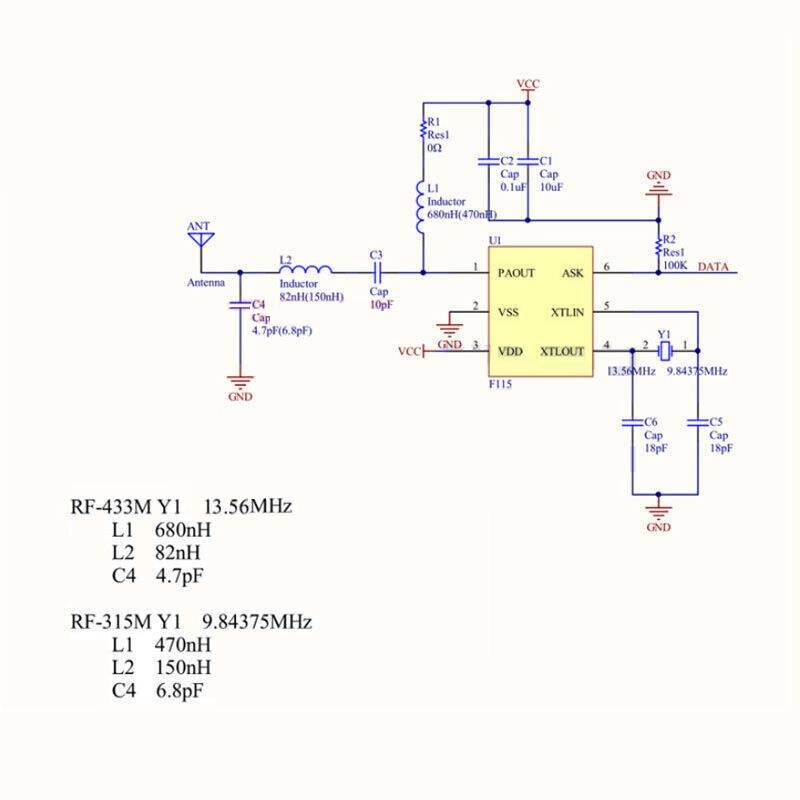

The SYN115 is a high performance, easy to use, single chip ASK Transmitter IC for remote wireless applications in the 300 to 450MHz frequency band. This transmitter IC is a true “data-in, antenna-out” monolithic device.It requires a reference frequency (RF carrier frequency divided by 32 times) generated from a crystal with a few additional external parts to create a complete versatile transmitter.

The SYN115 operates with ASK/OOK (Amplitude Shift Keying/On-Off Keyed) UHF receiver types from wide-band super-regenerative radios to narrow-band, high performance super-heterodyne receivers. The SYN115’s maximum ASK data rate is 10kbps.

Features of SYN115

• Complete UHF transmitter
• Frequency range 300MHz to 450MHz
• Data rates up to 10kbps ASK
• Output Power to 10dBm
• Low external part count
• Low voltage operation (down to 1.8V)
• Operate with crystals or ceramic resonators
• Power down modes and wake-up functions to reduce power consumption
• Package: SOT23-6

Operating Ratings

• Supply Voltage (VDD) +1.8V to +3.6V
• RF Frequency Range 300MHz to 450MHz
• Ambient Temperature (TA) –40°C to +85°C

Development resources:

• Datasheet
