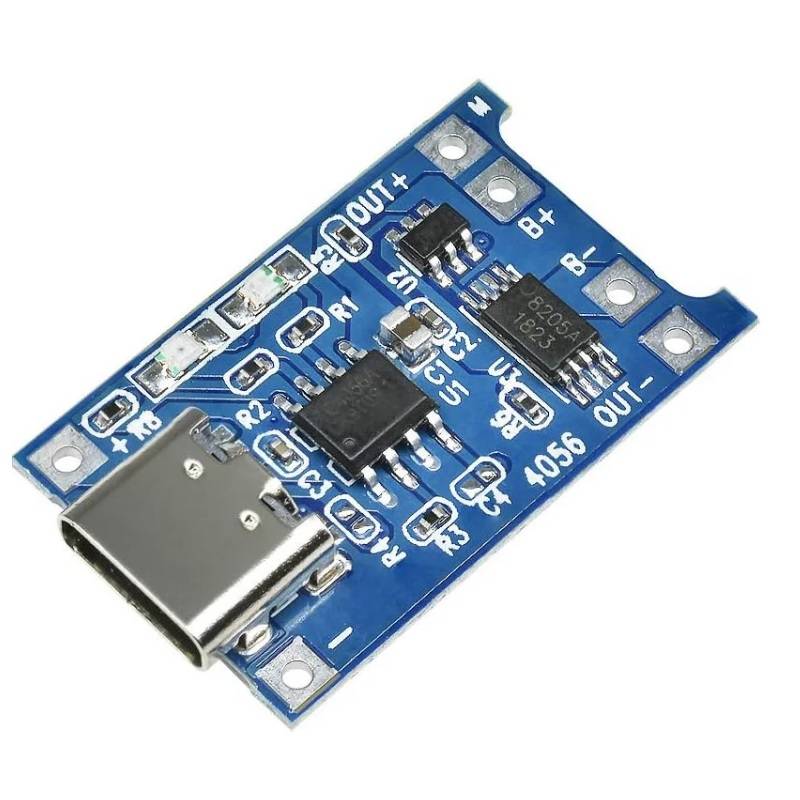

USB 5V 1A 18650 Lithium Battery Charger TP4056 Board With Over Discharge Protection Module

Basic attributes

Module name

Lithium battery charging board

charging method

Linear charging

recharging current

1A (adjustable)

Charging accuracy

1.5%

Input voltage

4.5V-5.5V

Full charge voltage

4.2V

Charging instructions

Red light charging Green light full

input interface

MICRO USB

Operating temperature

-10 ℃ to +85℃

Can it be reversed

Can’t reverse connection

weight

2.3g

Peripheral size

25*19*6mm (Taobao small size)

Features

·         This module uses a very mature charging chip TP4056, the peripheral circuit is simple, the protection performance is good, and the charging accuracy is high.

·         This module is fully mechanically automated and manufactured with full SMD parts. Each module will be tested before shipment, with high reliability.

·         The current of this module can be adjusted by itself. As long as the fixed resistance in the circuit board is changed, the output can be changed to 100mA-1000mA, which is very convenient.
