Description

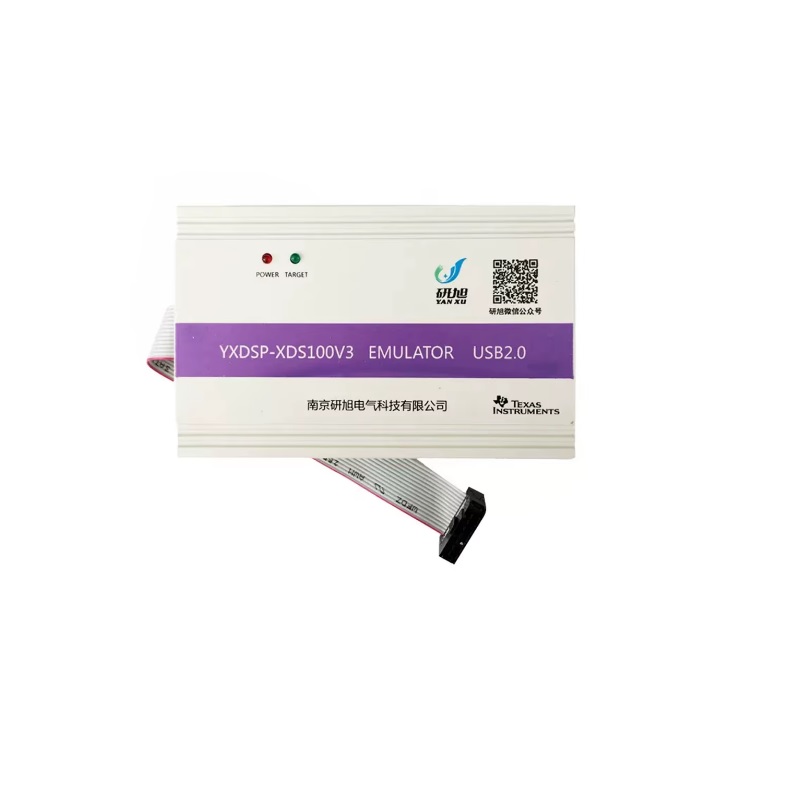

The XDS100V3 is an upgraded version of the XDS100V2, meticulously crafted based on TI’s published XDS 100V3 solution. It features a brand new, original IC with an internal 100MHz FPGA main control chip, resulting in more stable performance and faster speed.
Technical Specifications
Supported Chip Series
Product Features
-
High-Speed & Stable Performance: Powered by a 100MHz FPGA controller for faster code downloads and stable emulation.
-
Magnetic Isolation (Isolated Version): Unlike optocouplers, magnetic isolation provides superior linearity, signal stability, and a high common-mode transient immunity of >25 kV/µs.
-
3KV Surge Protection (Isolated Version): The JTAG port withstands high-voltage surges, and the USB and JTAG ports are completely galvanically isolated. This protects your emulator, computer, and target board.
-
Driver-Free Plug & Play: No driver installation is required. The emulator is automatically recognized when connected to the PC.
-
Wide Software Compatibility: Fully supports CCS 5.2/5.5/6.0 and higher versions.
-
Wide Chip Support: Compatible with TI’s 28x, 55x, 64x+, 674x, and OMAP-L13x series DSPs.
-
Robust Industrial Design: Features ESD protection chips and JTAG isolation protection for reliable operation in complex industrial field environments.
Design Notes
-
JTAG Voltage Flexibility: Supports both 3.3V and 1.8V target voltage standards, providing compatibility with older 3.3V-only devices and newer low-voltage DSPs.
-
Cable Length: Typically supplied with a 30cm flat cable (with 0.1″ pitch) for target connection, providing a clean and organized connection.
-
Debug Features: Supports JTAG reset, wait-to-reset boot mode, store reset startup mode, and online emulation of DSP Flash memory when used with CCSv5.
-
Power Supply: Powered via the USB port. 5V DC power can be sourced from the USB, and the emulator provides a reference voltage output to the target.
