128×64 3.6 inch ST7588 I2C Graphics Display Module

Description

128×64 3.6 inch ST7588 I2C Graphics Display Module

Product Description

The UGE ST7588i LCD Module is a high-quality 3.6-inch 128×64 dot matrix graphic display featuring a vivid orange background and dark pixel contrast.
Powered by the reliable ST7588i controller, it provides a crisp and stable image with low power consumption — ideal for embedded applications, measurement instruments, control panels, and custom electronics.

This module communicates via a 2-wire I²C interface, reducing wiring complexity and making it perfectly compatible with Arduino, ESP32, STM32, AVR, and most modern microcontrollers.

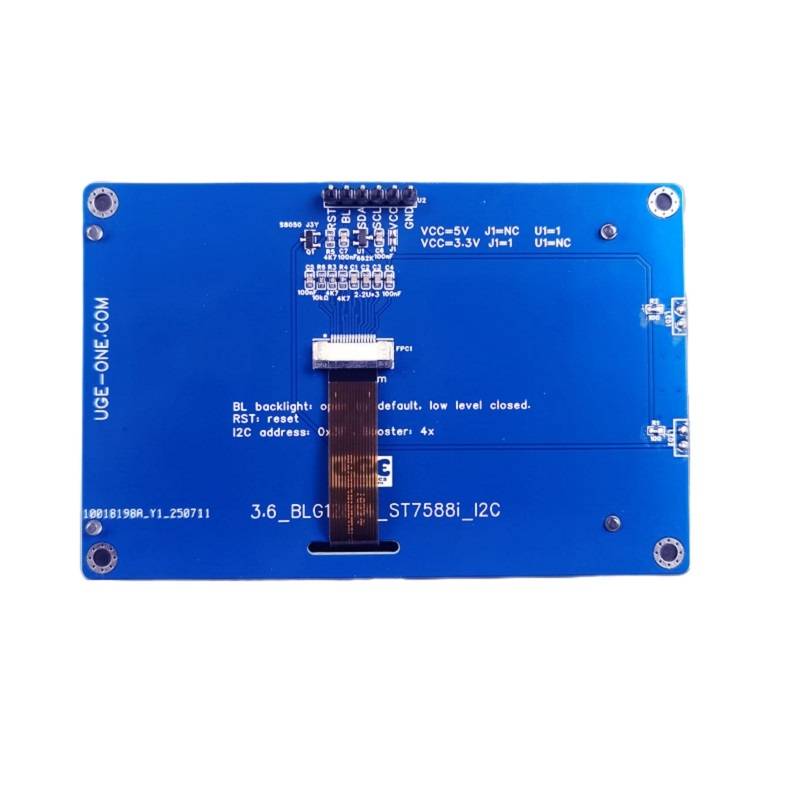

The module includes on-board voltage selection jumpers for 3.3 V or 5 V logic, reset pin, and optional backlight control, making integration effortless for both beginners and professionals.

Features

• Resolution: 128 × 64 graphic pixels

• Display Color: Orange background with dark text/graphics

• Controller: ST7588i (built-in)

• Interface: I²C (2-wire serial)

• Operating Voltage: 3.3 V / 5 V (selectable via jumper)

• Backlight: Controlled via onboard jumper

• Low power consumption — ideal for battery-powered systems

• Display area: 3.6 inches diagonal

• Compact PCB with 4 mounting holes

• Fully compatible with U8g2 graphics library

Sample Arduino Test Code

Library required:Install U8g2 by olikraus from Arduino Library Manager.

#include <Arduino.h>
#include <U8g2lib.h>
#include <Wire.h>

// Create display instance for your module
U8G2_ST7588_JLX12864_1_HW_I2C u8g2(U8G2_R2, /* reset=*/ U8X8_PIN_NONE);

void setup() {
u8g2.begin();
u8g2.setContrast(150); // Adjust brightness if needed
}

void loop() {
u8g2.firstPage();
do {
// Large title
u8g2.setFont(u8g2_font_helvB14_tr);
uint8_t w1 = u8g2.getStrWidth(“UGE Electronics”);
u8g2.drawStr((128 – w1) / 2, 38, “UGE Electronics”);

// Middle line – website
u8g2.setFont(u8g2_font_9x15_tr);
uint8_t w2 = u8g2.getStrWidth(“UGE-ONE.COM”);
u8g2.drawStr((128 – w2) / 2, 52, “UGE-ONE.COM”);

// Bottom – module info
u8g2.setFont(u8g2_font_4x6_tr);
uint8_t w3 = u8g2.getStrWidth(“128×64 I2C Graphics LCD Module”);
u8g2.drawStr((128 – w3) / 2, 61, “128×64 I2C Graphics LCD Module”);

} while (u8g2.nextPage());

while (1); // Keep static screen
}

Applications

• Industrial control panels

• Embedded systems and IoT devices

• Measuring instruments

• Data loggers and dashboards

• Educational trainer boards

• Consumer electronics displays
