SEW PC22K High Voltage Multifunction Phasing Sticks – 22 kV

Description

SEW PC22K High Voltage Multifunction Phasing Sticks – 22 kV

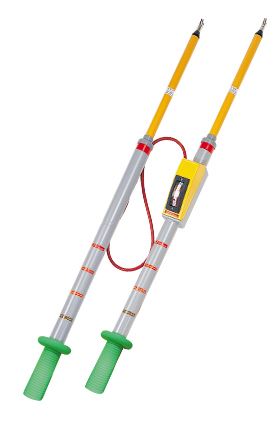

The SEW PC22K High Voltage Multifunction Phasing Sticks are professional electrical safety and testing instruments designed for 22 kV high-voltage systems. They combine phase comparison, voltage detection, and voltage measurement in a single, robust and lightweight instrument.

SEW PC22K High Voltage Multifunction Phasing Sticks – 22 kV

Key Features:

• Designed for 22 kV systems, with a maximum voltage rating of 30 kV.
• Enables phase-to-phase measurement and phase-to-earth testing.
• Allows technicians to compare phases and determine phase relationships.
• Dual color-coded analogue scale for % and AC voltage indication.
• Built-in neon voltage indicator for voltage detection above 1.2 kV.
• High-quality fiberglass-wound insulating rod for enhanced mechanical strength and electrical insulation.
• Self-powered design — no batteries required.
• High immunity to electrical interference fields.
• Suitable for grounded and ungrounded systems.
• Lightweight, robust, and compact construction for field use.
• Suitable for indoor and outdoor applications in dry conditions.
• Current is limited to approximately ±1 mA.
• Designed in accordance with IEC 61481 requirements.
• Supplied with a protective carrying case.

Technical Specifications:

• Model: PC22K
• System Voltage: 22 kV
• Full-Scale Voltage: 24 kV
• Maximum Voltage: 30 kV
• Total Resistance: 10.82 MΩ
• Response Time: < 1 second
• Neon Threshold: 1.2 kV
• Neon Fully Lit: 1.5 kV
• Handle Length: 775 mm
• Front-End Length: 500 mm
• Total Length: 1.275 m
• Weight: Approximately 2.2 kg
