Description

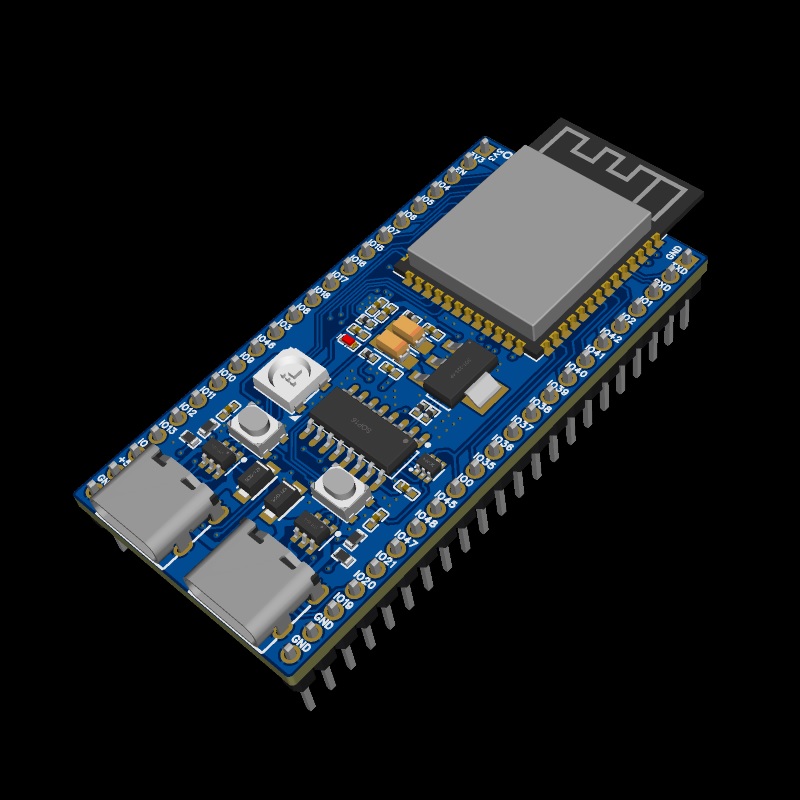

PCB FOR ESP32-S3 USB Development Board
Product Description
This product is a high-quality empty bare PCB designed for the ESP32-S3 module, intended for DIY assembly, prototyping, and custom embedded development.

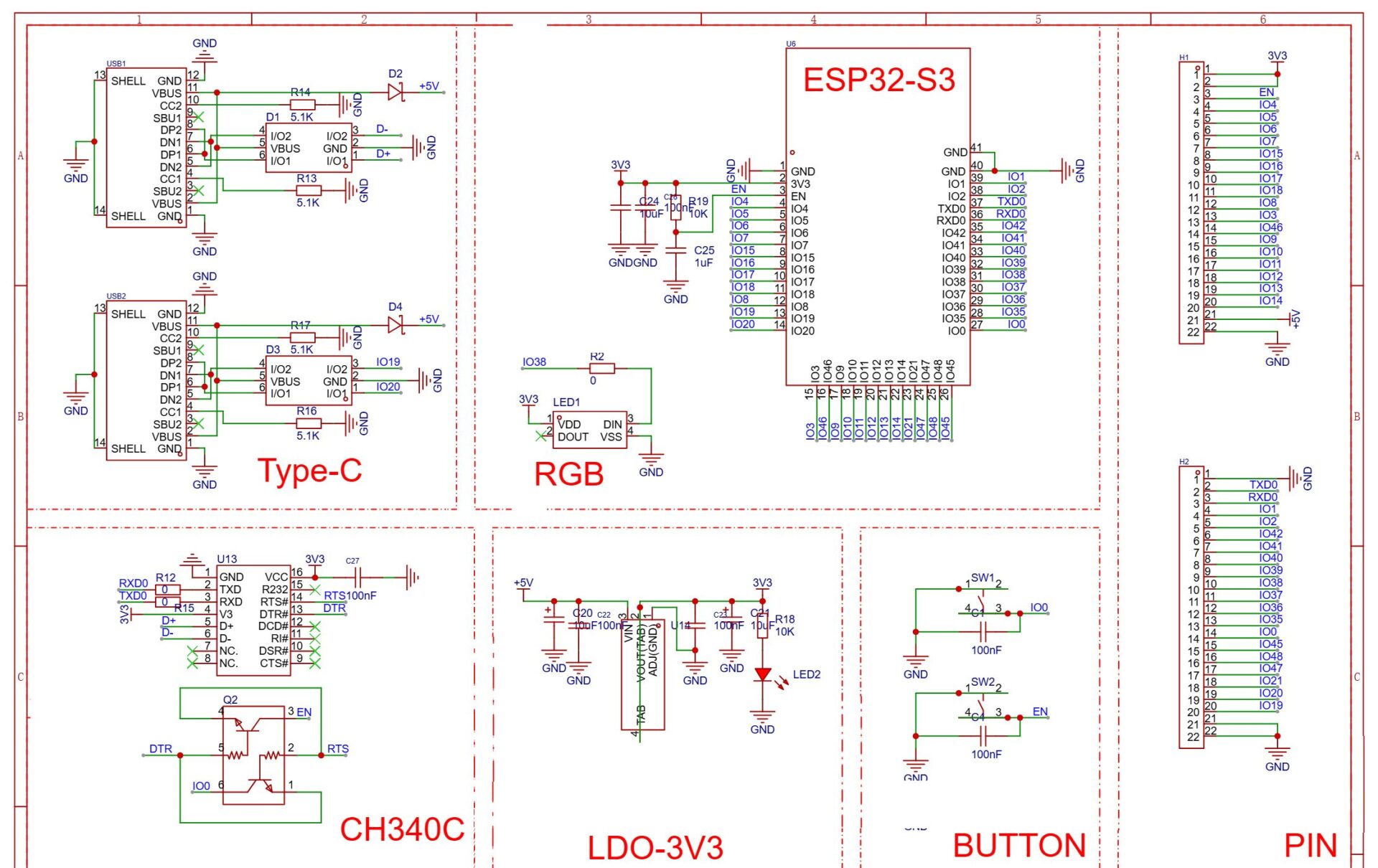

The board integrates a CH340C USB-to-UART interface combined with a UMH3N transistor array to provide fully automatic serial uploading and programming, eliminating the need for manual BOOT or RESET button handling.
It features dual USB Type-C connectors, each protected by a USBLC6 ESD protection chip, ensuring enhanced durability and protection against electrostatic discharge during development and frequent connections.
An onboard WS2812 RGB LED allows user-programmable visual feedback for system status, debugging, or UI indicators.
This product is sold as an empty bare PCB, giving makers full flexibility to choose components and assemble according to their project needs. A soldering and assembly guide is provided for easy construction.
Key Features
-
Designed for ESP32-S3 module
-
Empty bare PCB for DIY soldering
-
CH340C USB-to-UART converter
-
UMH3N transistor array for automatic boot & reset control
-
Dual USB Type-C connectors
-
USBLC6 ESD protection on both USB ports
-
Onboard WS2812 RGB LED (user programmable)
-
Clearly labeled GPIO pins on silkscreen
-
Compact, breadboard-friendly layout
-
Optimized for hand soldering
What’s Included
❌ ESP32-S3 module and electronic components are not included
Power & Programming
-
Powered via USB Type-C
-
Automatic firmware upload via CH340C
-
Compatible with Arduino IDE, ESP-IDF, and PlatformIO
-
No manual BOOT/RESET button sequence required
Applications
-
ESP32-S3 prototyping and testing
-
USB-enabled IoT devices
-
Wireless & AI-enabled projects
-
Educational and training boards
-
Custom embedded hardware development
Notes
-
Intended for users with basic SMD soldering skills
-
Assembly documentation included
-
Ideal for developers who want full control over component selection
Reviews
There are no reviews yet.
